Volvo EX90 Charging cable

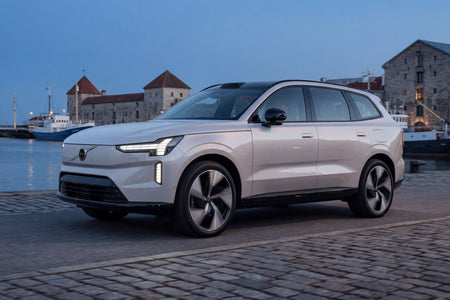

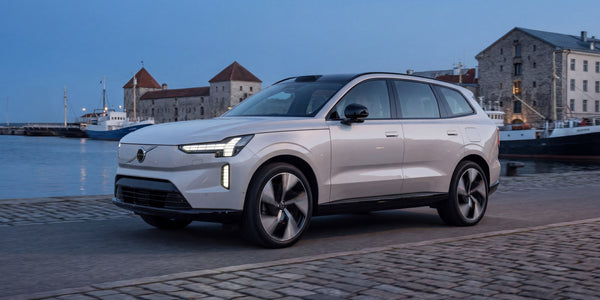

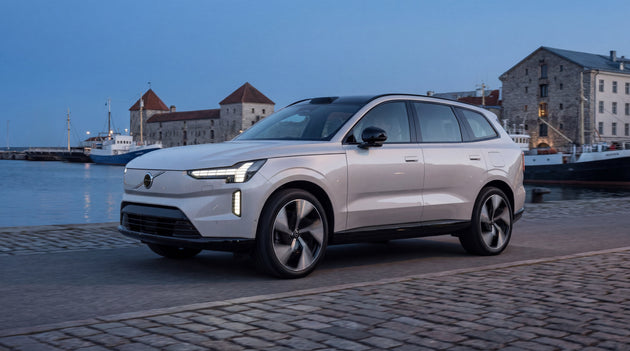

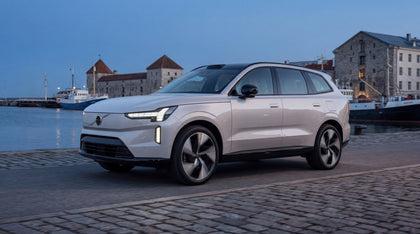

The Volvo EX90 is Volvo's flagship all-electric SUV, built on the SPA2 platform shared with the Polestar 3 and offering seven-seat capability in a package that combines Scandinavian refinement with genuine long-distance ability. Two battery sizes serve the range: the Single Motor (rear-wheel drive) pairs a 92 kWh (88 kWh usable) battery with a 245 kW motor for a WLTP range of up to 572 km (356 miles) and a 0–100 km/h time of 6.8 seconds, while the Twin Motor (all-wheel drive) uses a 106 kWh (102 kWh usable) pack with a combined 335 kW across two permanent magnet synchronous motors, reaching 0–100 km/h in 5.5 seconds and delivering up to 625 km (388 miles). Both reach a top speed of 180 km/h. The 2026 model year brings an 800-volt electrical architecture, improving DC fast charging performance. The standard onboard AC charger is rated at 11 kW across three phases on all variants. The CCS2 charging port sits on the left rear flank.

AC wallbox charging times for the Volvo EX90

The EX90's 11 kW three-phase onboard charger is standard across the range. Connected to an 11 kW three-phase wallbox with a correctly rated Type 2 cable, the Single Motor's 88 kWh usable battery charges from empty to full in approximately 8 hours and 50 minutes once typical efficiency losses of around 10 % are factored in. The Twin Motor's 102 kWh pack takes closer to 10 hours and 10 minutes. Both are overnight charges in every practical sense, with the Single Motor comfortably recovering a full battery during a standard sleeping window.

On a single-phase 32 A home wallbox, the cable rating determines how much power reaches the car. With a 22 kW cable (32 A per phase), the single available phase delivers 7.4 kW: the Single Motor charges in approximately 13 hours and the Twin Motor in around 15 hours and 10 minutes. An 11 kW cable restricts current to 16 A on that single phase, limiting the rate to 3.7 kW and pushing the Twin Motor past 30 hours: entirely impractical over any normal overnight period. For any EX90 owner on a single-phase home supply, a 22 kW cable is essential.

DC fast charging with 800-volt architecture

The 2026 EX90's 800-volt electrical system reduces heat generation during DC charging, enabling higher sustained power. At a suitably rated high-power charger, the battery reaches 10–80 % in approximately 22 minutes. A full 0–100 % charge takes roughly 55–60 minutes once the battery management system's end-of-charge taper is accounted for. Volvo states that 10 minutes of charging adds up to 250 km of WLTP range under optimal conditions: enough for a meaningful leg of any journey. At 400-volt charging stations, the system is compatible via bank charging, splitting the 800-volt battery into two 400-volt halves for efficient charging without a voltage booster.

Selecting the right Type 2 cable for the Volvo EX90

With batteries ranging from 88 to 102 kWh usable, the choice of cable has a substantial impact on AC charge times. A 22 kW Type 2 cable is the recommended choice for every EX90 owner.

At a three-phase wallbox, an 11 kW cable delivers the full 11 kW the car can accept. On a single-phase 32 A wallbox, however, the cable's 16 A per-phase rating restricts the charge to 3.7 kW, pushing the Twin Motor past 30 hours. A 22 kW cable removes this bottleneck by allowing 32 A on the single available phase, bringing 7.4 kW to the car and reducing the charge time to around 15 hours: manageable with overnight or day-long charging.

A 22 kW cable also future-proofs the purchase for any subsequent vehicle with 22 kW AC charging, and handles both single-phase and three-phase scenarios without compromise.

Cable length and parking

The EX90's CCS2 port is positioned on the left rear flank. Reversing towards the wallbox brings the port closest to the charger, keeping the cable route short and tidy. Given the EX90's length of just over 5 metres, an extra metre or two of cable provides useful margin.

Voldt® Type 2 cables are available in 4, 6, 8, 10, 15, 20, and 40 metre lengths. A 4 m cable suits a tight home setup where the wallbox sits directly beside the parking spot. For most driveways and garages, 6 m provides comfortable reach. An 8 m cable is a practical everyday option for home and public use, while 10 m adds flexibility at public charge points where the post may be further from the bay. A 15 m cable covers hotel car parks, wider bays, and longer driveways. The 20 m and 40 m lengths serve commercial, depot, and specialist installations.

Portable charging with a CEE charger

A Voldt® portable CEE charger adds flexibility for charging the EX90 away from a dedicated wallbox.

At a 32 A or 16 A three-phase CEE socket (red, five-pin, found at industrial sites and workshops), the charger delivers the car's full 11 kW ceiling. The Single Motor charges in approximately 8 hours and 50 minutes; the Twin Motor in around 10 hours and 10 minutes. Both require an overnight session at a property with industrial power, but complete comfortably within that window.

At a blue 16 A single-phase CEE socket, the standard fixture at holiday campsites and caravan parks across Europe, output is limited to 3.7 kW. The Single Motor takes approximately 26 hours for a full charge; the Twin Motor, over 30 hours. Neither is a realistic proposition for a battery of this size. Even over a long weekend, a blue CEE hook-up recovers only a fraction of the total range. Red three-phase CEE sockets are not standard campsite infrastructure: they belong to industrial premises, workshops, and some commercial marinas.

From a standard European household socket (Schuko), continuous output is restricted to a safe 2.3 kW (10 A). A full charge would take approximately 42–49 hours depending on variant. A domestic socket serves strictly as an emergency fallback and is entirely impractical for a battery of this capacity.

Built to last, backed by Voldt®

Voldt® charging cables are CE, UKCA and TÜV certified and manufactured according to IATF 16949 automotive quality standards. Single-piece moulded connectors, no glue or screws. IP67-rated for operation between −30°C and +50°C. 100% copper conductors with silver-plated contacts. Tested beyond 10,000 connection cycles. Three-year warranty, 100-day returns, free shipping across Europe.
